Consumables >> Consumables >> GaInP/GaAs/Ge Epitaxial Wafer-30% Triple Junction

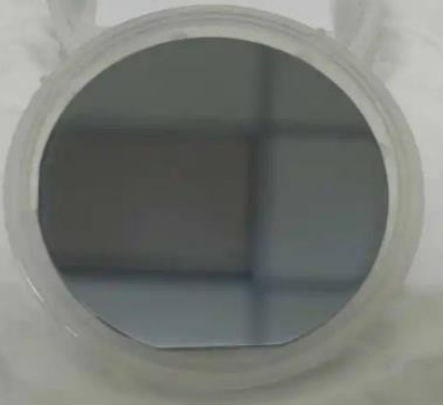

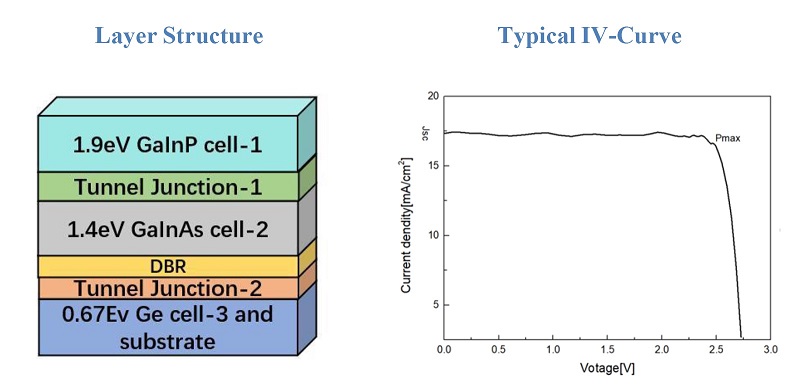

The  unprocessed Epitaxial Wafers of class 30% contain our high-efficiency GaInP/GaAs/Ge based epitaxial layers on a Ge substrate. These epixial wafers can be used for any further processing and customized cell designs.

















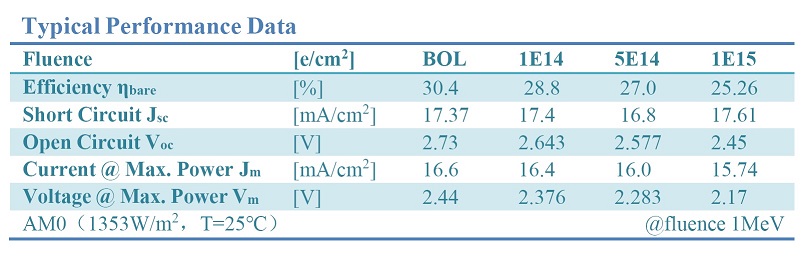

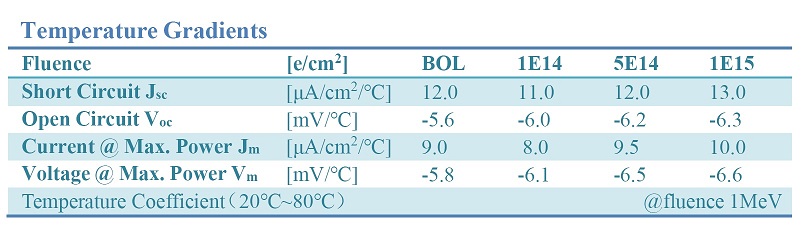

Design and Mechanical Data


Substrate Material ：GaInP/GaInAs/Ge on Ge substrate Base Material ：100 mm ±0.20


Thickness ：145 μm ±15 μm or 175 μm ±15 μm


Major Flat length ：32.5 mm ±2 mm


Major Flat orientation：(100) ±2°





Average Weight ：≤ 93 mg/cm2


Laser mark label：Alpha-numeric
